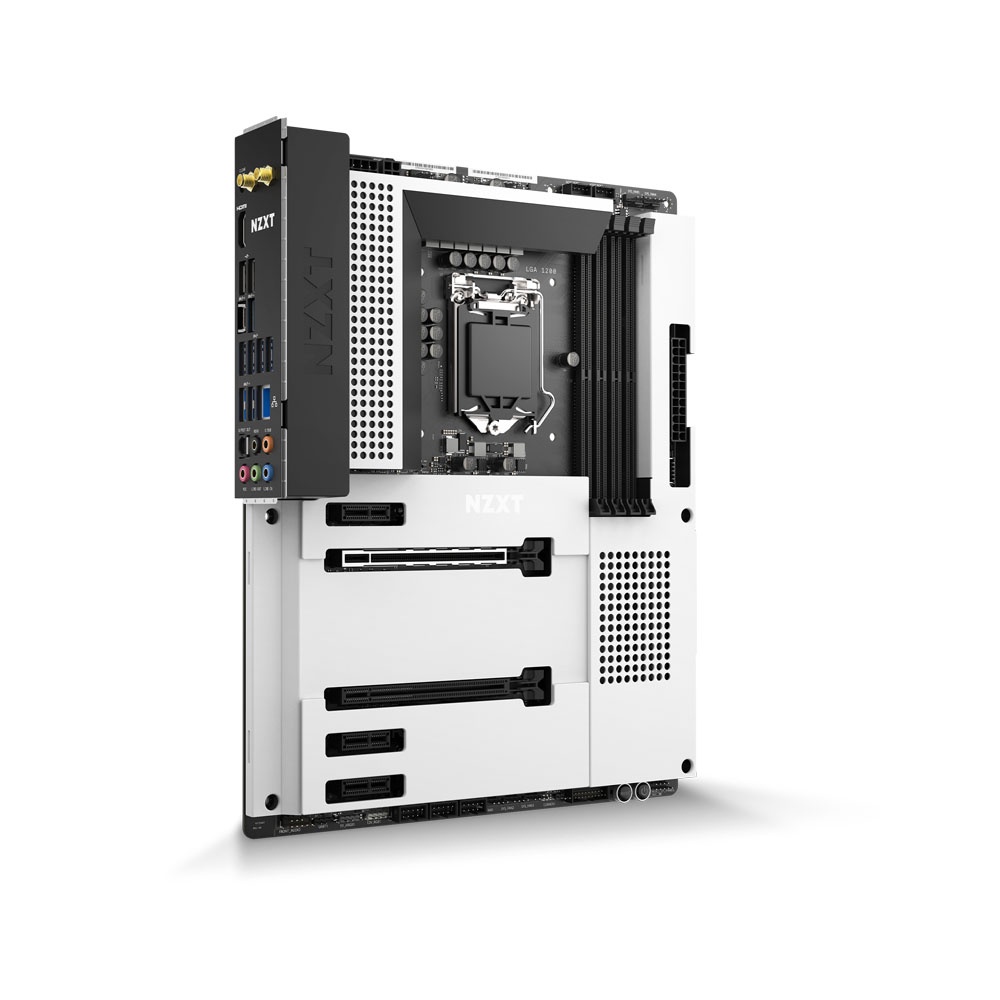

MAINBOARD NZXT N7 Z590 MATTE WHITE

Giới thiệu MAINBOARD NZXT N7 Z590 MATTE WHITE

CPU

Intel® Socket LGA1200 cho chip set thế hệ 10th và 11th

Turbo Boost Max 3.0 Technology

Chipset

Intel® Z590

Ram


Số slot hỗ trợ: 4

Ram hỗ trợ tối đa: 128GB

Dual-Channel Memory Architecture

OC Frequency (Cho Chip thế hệ 11th) 4600+ MHz

OC Frequency (Cho Chip thế hệ 10th) 4400+ MHz

Base Frequency (Cho Chip thế hệ 11th) 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Base Frequency (Cho Chip thế hệ 10th) 2933 / 2800 / 2666 / 2400 / 2133 MHz

Non-ECC, Un-buffered Memory

Intel® XMP 2.0 Support

Cổng xuất hình


Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b

HDMI hỗ trợ xuất hình tối đa: 4096x2160@60Hz

Multi-GPU Support

AMD 2-Way CrossFireX™ Technology

Khe cắm mở rộng

PCIe x16 (x16 mode): 1 (Hỗ trợ chip set thế hệ 11th - PCIe 4.0, Hỗ trợ chip set thế hệ 10th - PCIe 3.0)

PCIe x16 (x4 mode): 1

PCIe 3.0 x1: 3

Bộ nhớ lưu trữ

M.2 Type 2242/2260/2280 (PCIe x4 mode) :1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)

M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode): 1

SATA 6Gb/s: 4

RAID 0/1/5/10 Support

Intel® Smart Response Technology

Intel® Rapid Storage Technology

Intel® Optane Memory

LAN

Realtek® RTL8125BG 2.5G

Wireless

Intel® Dual-Band Wireless
AX210 Wi-Fi 6E

Protocol: 802.11 a/b/g/n/ac/ax

Frequency Bands: 2.4 / 5 / 6 GHz

MU-MIMO Support

Bluetooth: V5.2

Audio

Realtek® ALC1220 Codec

Channels: 8-Channel High Definition Audio

Playback 32-bit / 192kHz DAC

Capacitors Nichicon Fine Gold Series

Cổng I/O phía sau

USB 3.2 Gen 2x2 (Type-C): 1

USB 3.2 Gen 2 (Type-A): 3

USB 3.2 Gen 1 (Type-A): 4

USB 2.0: 2

HDMI™ 2.0: 1

Wireless Antenna: 2 (2T2R)

LAN (RJ45) Port: 1

5.1-Channel Audio Jacks: 1

Optical S/PDIF :1

Clear CMOS Button: 1

Cổng I/O bên trong

M.2 (M Key), Type 2242/2260/2280: 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)

M.2 (E Key) (For wireless cards): 1

SATA 6Gbps Ports: 4

USB 3.2 Gen 2 Header (Type-C): 1

USB 3.2 Gen 1 Header: 2 (Up to 4 ports)

USB 2.0 Header: 3 (Up to 6 ports)

Front Panel Audio: 1

CPU FAN Connector: 1 (Up to 24W)

AIO PUMP Connector: 1 (Up to 24W)

SYS FAN Connector: 5 (Up to 24W)

NZXT RGB LED Header: 2

5V ARGB Header: 1

12V RGB Header: 1

24-pin EATX Power: 1

8-pin ATX 12V Power: 1

4-pin ATX 12V Power: 1

Nút nguồn: 1

Nút reset: 1

POST LEDs: 4

Thông tin chung

Hệ điều hành: Windows® 10 64-bit

Kích thước thiết kế: ATX

Thời gian bảo hành: 3 năm

Model Number: N7-Z59XT-W1

UPC: 815671015211

EAN:5060301696666
